160 Volt Module
ASK Technologies’ 160V module is designed to provide energy storage and power delivery for wind turbine pitch control, short-term uninterrupted power supply (UPS) and renewable energy systems. Primarily designed for pitch control systems for 1.5 to 3MW wind turbines, the 160V module provides a turnkey solution to simplify the installation process and reduce costs for all integration partners.
Ultracapacitors have been designed into an ever-expanding share of the electric pitch system portion of the market due to their longer operating lifetime, low maintenance requirements and superior cold weather performance when compared to batteries. The 160V module is a cost-effective and easy-to-install energy storage and power delivery solution for wind turbine pitch control systems.
#p#introduction#e#
ELECTRICAL
Rated Capacitance: 5.8 F
Minimum Capacitance, initial: 5.8 F
Maximum Capacitance, initial: 7 F
Maximum ESRDC, initial: 240 mΩ
Test Current for Capacitance and ESRDC: 35 A
Rated Voltage: 160 V
Absolute Maximum Voltage: 170 V
Absolute Maximum Current: 170 A
Leakage Current at 25°C, maximum: 25 mA
Maximum Series Voltage: 750 V
Capacitance of Individual Cells: 350 F
Maximum Stored Energy, Individual Cell: 0.35 Wh
Number of Cells: 60
TEMPERATUR
Operating Temperature (Cell Case Temperature): -40℃~65℃
Storage Temperature (Stored Uncharged): -40℃~70℃
PHYSICAL
Mass, typical: 5.2 kg
Power Terminals: M5 Thread
Recommended Torque - Terminal: 4 Nm
Vibration Specification: IEC60068-2-6
Shock Specification: IEC60068-2-27,-29
Environmental Protection: IP54
Cooling: Natural Convection
MONITORING / CELL VOLTAGE MANAGEMENT
Internal Temperature Sensor: N/A
Temperature Interface: N/A
Cell Voltage Monitoring: Voltage Center Tap
Connector: M4
Cell Voltage Management: Passive
POWER & ENERGY
Usable Specific Power, Pd: 2,500 W/kg
Impedance Match Specific Power, Pmax: 5,100 W/kg
Specific Energy, Emax: 4 Wh/kg
Stored Energy, Estored: 21 Wh
SAFETY
Short Circuit Current, typical: 670 A
Certifications: RoHS
High-Pot Capability: 5,600 VDC
THERMAL CHARACTERISTICS
Thermal Resistance (Rca, All Cell Cases to Ambient), typical: 1.1℃/W
Thermal Capacitance (Cth), typical: 4,800 J/℃
Maximum Continuous Current (ΔT = 15℃): 7 ARMS
Maximum Continuous Current (ΔT = 40℃): 12 ARMS
#p#Parameters#e#

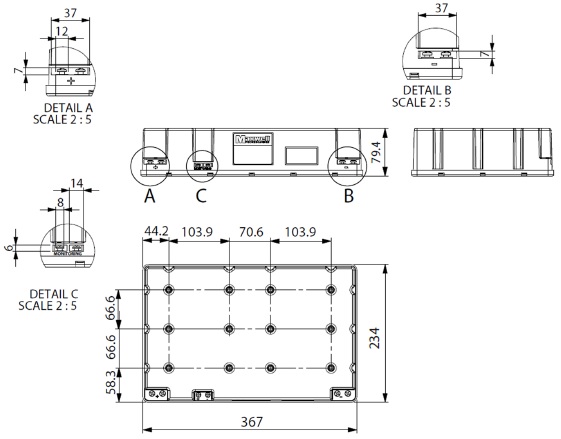

#p#Structure#e#
